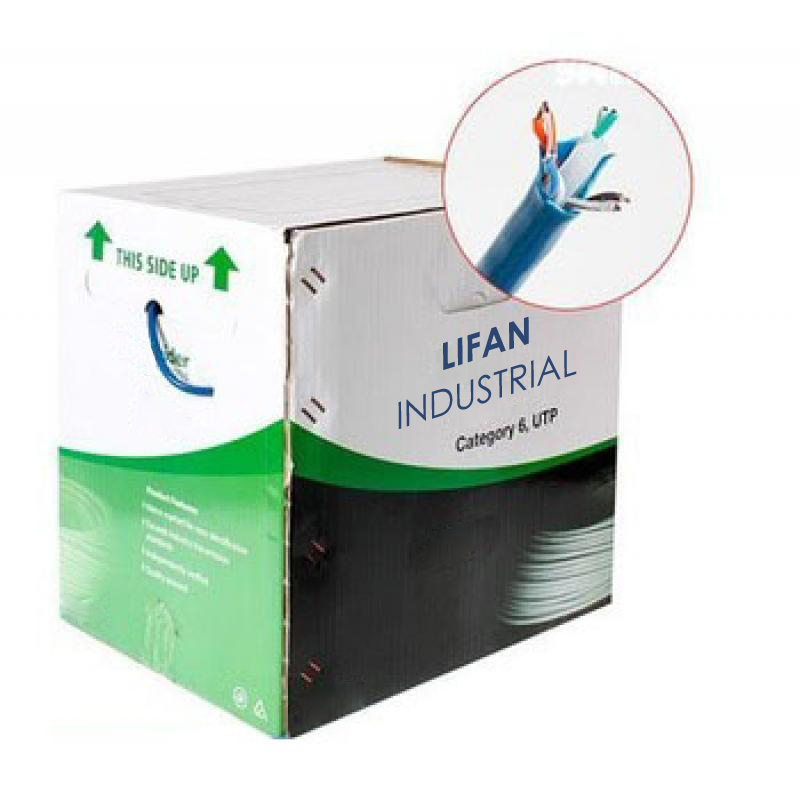

Description LIFAN CAT6 UTP Cable (Pure Copper 23AWG) Product Description lIFAN Cat6 UTP Unshield Cable Roll, 305M CAT6 4Pair Unshield Twisted Pair, CM rated, lIFAN, 23AWG, 305m/box, Blue Category 6 UTP PVC Cables The lIFAN 4-Pair Category 6 Cable is a superior product delivering excellent network performance when used in conjunction with other Category 6 products. The Category 6 cable consists of 4 pairs of solid insulated copper 23AWG (0.57mm) and is UL listed with a CM fire rating. It is designed for use in horizontal cabling situations and supplied in 305m (1,000ft) easy pull out boxes. The Category 6 cable provides a significant margin (10dB) above the minimum Category 6 Near End Crosstalk NEXT requirement of ANSI/TIA/EIA-568 and ISO/IEC 11801. Characteristics Main Range of product lIFAN Product or component type Copper cable Complementary Type of cable 4 pair cables Cable shielding type UTP Communication network category 6 Flame retardance CM Return loss 20.1 dB, at 100 MHz 25 dB, at 20 MHz 21.5 dB, at 62.5 MHz 24.5 dB, at 8 MHz 25 dB, at 10 MHz 24.3 dB, at 25 MHz 23.6 dB, at 31.25 MHz 25 dB, at 16 MHz 23 dB, at 4 MHz 19.4 dB, at 0.772 MHz 20 dB, at 1 MHz Attenuation 22 dB at 100 MHz, cable length 100 m 1.8 dB at 0.772 MHz, cable length 100 m 4.1 dB at 4 MHz, cable length 100 m 8.2 dB at 16 MHz, cable length 100 m 5.8 dB at 8 MHz, cable length 100 m 11.7 dB at 31.25 MHz, cable length 100 m 10.4 dB at 25 MHz, cable length 100 m 17 dB at 62.5 MHz, cable length 100 m 6.5 dB at 10 MHz, cable length 100 m 9.3 dB at 20 MHz, cable length 100 m 2 dB at 1 MHz, cable length 100 m Attenuation to crosstalk ratio (ACR) 37 dB at 20 MHz 13 dB at 100 MHz 21 dB at 62.5 MHz 65 dB at 0.772 MHz 46 dB at 8 MHz 34 dB at 25 MHz 31 dB at 31.25 MHz 44 dB at 10 MHz 52 dB at 4 MHz 39 dB at 16 MHz 63 dB at 1 MHz Power Sum Near End Crosstalk (PS NEXT) 35.4 dB at 62.5 MHz 32.3 dB at 100 MHz 42.8 dB at 20 MHz 62.3 dB at 1 MHz 53.3 dB at 4 MHz 64 dB at 0.772 MHz 39.9 dB at 31.25 MHz 47.3 dB at 10 MHz 44.3 dB at 16 MHz 48.8 dB at 8 MHz 41.3 dB at 25 MHz Near end crosstalk 38.4 dB at 62.5 MHz 42.9 dB at 31.25 MHz 67 dB at 0.772 MHz 35.3 dB at 100 MHz 51.8 dB at 8 MHz 45.8 dB at 20 MHz 47.3 dB at 16 MHz 44.3 dB at 25 MHz 50.3 dB at 10 MHz 56.3 dB at 4 MHz 65.3 dB at 1 MHz Input impedance 100 Ohm ( /- 6) at 1…100 MHz Loop resistance <= 73.2 Ohm/km Capacitance unbalance 330 pF / 100 m Resistance unbalance 5 % Colour tint Blue Wire insulation material ON Material conductor Solid bare copper AWG gauge AWG 23 Temperature resistance 75 °C Product certifications UL Cable outer diameter 4.9 mm Cable length 305 m Environment Standards UL 444 ISO / IEC 11801 ANSI / TIA / EIA-568-B Offer Sustainability Sustainable offer status Green Premium product Product environmental profile Available Product end of life instructions Need no specific recycling operations
