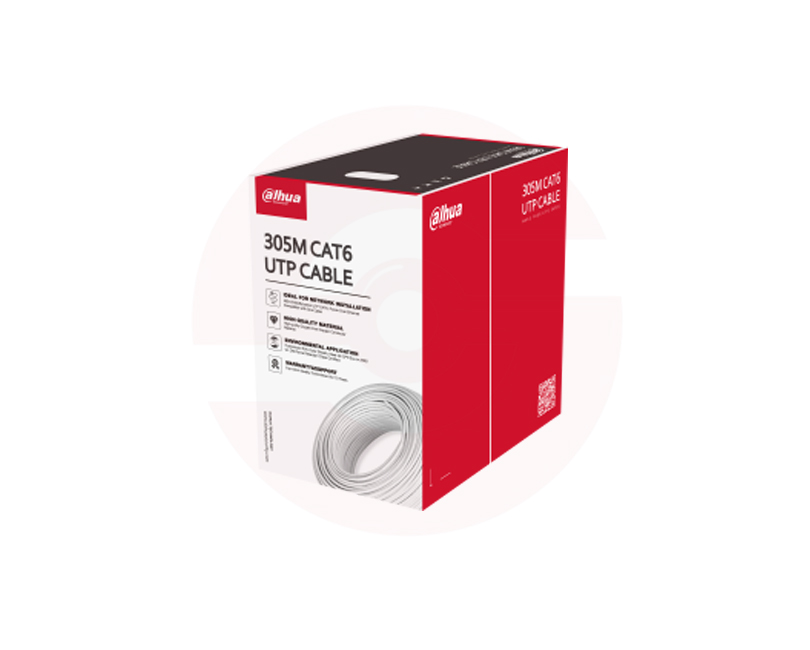

Description Dahua CAT6 Cable Pure Copper Specifications Conductor Material Oxygen free copper (99.97% purity) Diameter 0.57mm ± 0.01 mm American Wire Gauge 23AWG Insulation Material HDPE Min. Average Thickness 0.21 mm Diameter 1.0 mm ± 0.1 mm Color (4 Pairs) Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown Separator Material PE Specification Translucent 4.5 × 0.4 mm Rip Cord Material Polyester Specification 500D Sheath Material PVC Min. Average Thickness 0.5 mm Diameter 6.3 mm ± 0.3 mm Color White Electrical Max. DC Resistance of a Single Conductor 7.5Ω/100 m Min. Insulation Resistance 5000MΩ·km Max. DC Resistance Unbalance 5% (pair intra) Dielectric Strength No breakdown with 2.5KV DC for 2 seconds Transmission Characteristic Impedance 100 ± 15Ω Near End Cross Talk ≥38.3 dB/100 m@250 MHz Max. Attenuation 32.8 dB/100 m@250 MHz Return Loss ≥17.3 dB/100 m@250 MHz Mechanical Tensile Strength Sheath≥13.8 MPa, insulation≥16.5 MPa Elongation at Break Sheath≥100%, insulation≥300% Installation Bending Radius >8 times of outer cable diameter Conductor Elongation at Break ≥20% Environmental Shrinkage of Insulation ≤6% Color Migration Resistance of Insulation No migration Sheath Tensile Strength and Elongation at Break after Aging ≥11.73 MPa, ≥50% Low Temperature Bending Test No cracking after the test Heat Shock Test No cracking after the test Operation Temperature –20°C to 60°C (–4°F to 140°F) Installation Temperature 0°C to 50°C (32°F to 122°F) Storage Temperature and Humidity –10°C to 40°C (14°F to 104°F), <60% (RH) Security Vertical Fire Propagation Test Comply with UL1685(without smoke measurements) Packaging Cable Length 305.0 m (1000.66 ft) ± 1.5 m (4.92 ft) Inner Carton Dimensions 416.0 mm × 412.0 mm × 220.0 mm (16.38″ × 16.22″ × 8.66″) (L × W × H) Packaging Method 305.0 m (1000.66 ft) a carton, one master carton with 2 inner cartons Net Weight ≥11.9 kg (26.24 lb) Gross Weight ≥12.9 kg (28.44 lb) Compliance Executive Standards ANSI/TIA 568-C.2-2009, UL444-2008 Certification Certification UL CM Transmission Characteristics (100 m at 20°C) (328.08 ft at 68°F) Frequency (MHz) Phase delay ≤ ns IL≤ dB TCL≥ dB﹡ EL TCTL≥ dB﹡ NEXT ≥ dB PS NEXT ≥ dB 1 570 2.0 40.0 35.0 74.3 72.3 4 552 3.8 40.0 23.0 65.3 63.3 8 547 5.3 40.0 16.9 60.8 58.8 10 545 6.0 40.0 15.0 59.3 57.3 16 543 7.6 38.0 10.9 56.2 54.2 20 542 8.5 37.0 9.0 54.8 52.8 25 541 9.5 36.0 7.0 53.3 51.3 30﹡ 540.6 10.4 35.2 5.5 53.1 50.1 31.25 540 10.7 35.1 n/s 51.9 49.9 62.5 539 15.4 32.0 n/s 47.4 45.4 100 538 19.8 30.0 n/s 44.3 42.3 200 537 29.0 27.0 n/s 39.8 37.8 250 536 32.8 26.0 n/s 38.3 36.3 Frequency (MHz) ACRF ≥ dB PS ACRF ≥ dB RL ≥ dB Delay skew ≤ ns Zc(Ω) 1 67.8 64.8 20.0 45.0 100±15 4 55.8 52.8 23.0 8 49.7 46.7 24.5 10 47.8 44.8 25.0 16 43.7 40.7 25.0 20 41.8 38.8 25.0 25 39.8 36.8 24.3 30﹡ 38.3 35.3 23.8 31.25 37.9 34.9 23.6 62.5 31.9 28.9 21.5 100 27.8 24.8 20.1 200 21.8 18.8 18.0 250 19.8 16.8 17.3 Note: Executive standard for the above parameters: ANSI/TIA-568-C.2-2009 “n/s”=Not Specified “﹡”=Unless otherwise customer stated the test results default to not shown in test report but comply with standar
