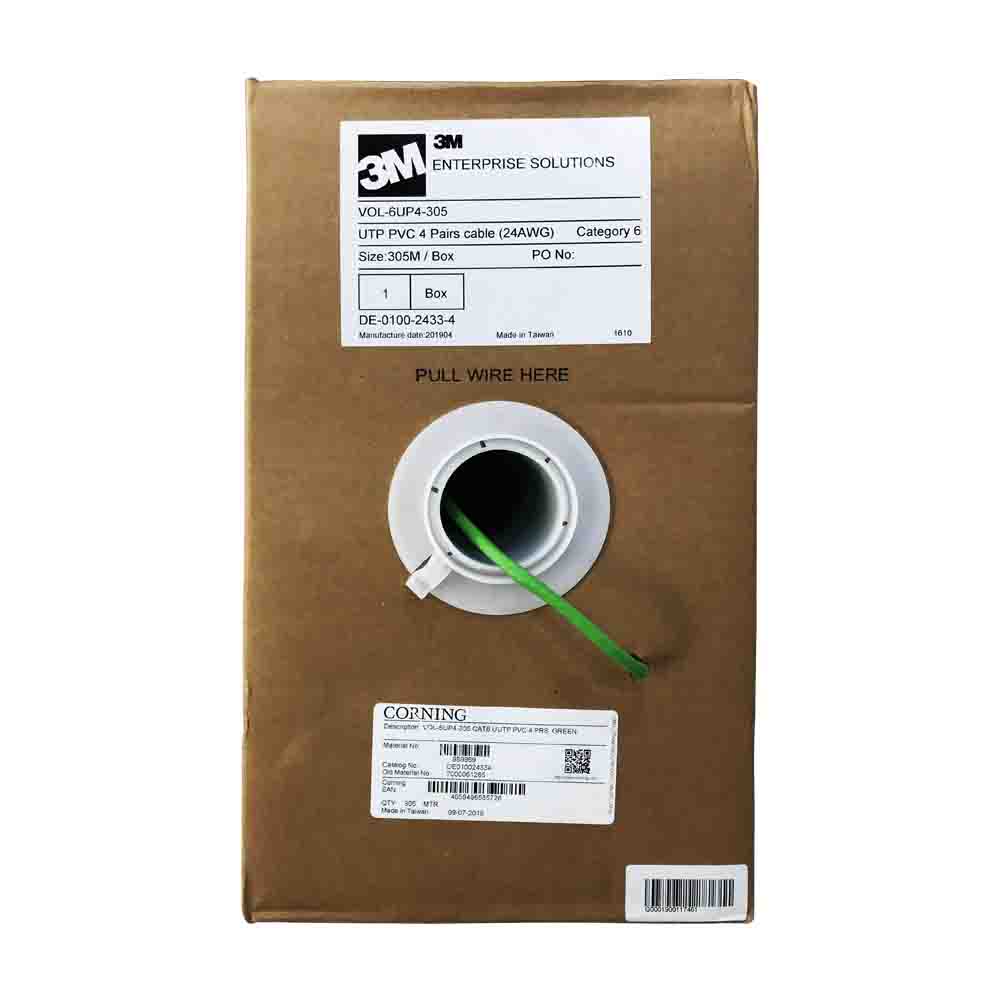

3M Cat6 UTP Pure Copper

$67.72 $124.6
Description 3M Cat6 UTP Pure Copper Description   Features • Cat 6 • Length printed on the cable sheath • LSOH sheath, IEC 60332-1 Category C2 type • Round shape Benefits • Alien crosstalk immunity certified up to 500MHz • Simplified Installation • Complies with public building requirements • Easy to connect our RJ45 OCK10S8   Technical Specification Electrical characteristics at 20º C: Conductor resistance (max.): 98,6 W /km Insulation resistance (min): 5000 MW/km Dielectric strength at 50Hz: 1 KV / 1 min Unbalanced capacitance – pair to ground (max): 800 pF / 500m Propagation velocity (NVP): 78% Characteristic impedance at 100 MHz: 100ø ± 15% from 1 to 100 MHz Mechanical installation characteristics Minimum bend radius: 60 Maximum pulling tension: 90 Nominal weight: 51 kg/km Temperature characteristics (°C) Transport / storage: 0 to 50°C Operating temperature: -20 to 60°C
