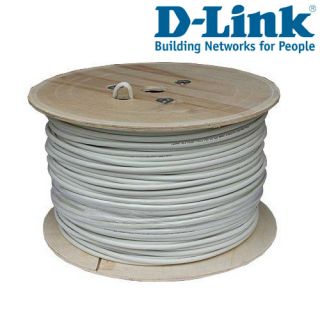

Description D-Link CAT6 UTP CABLE 305M Roll Dlink CAT6 UTP Cable 23AWG Solid, 305M is designed for use in next generation data communications networks, and will comfortably support all present applications including Gigabit Ethernet. D-Link Category 6 UTP Solid Cable offers the performance characteristics required by the ever present Category 6 Standard. When used in conjunction with Connectix Category 6 Modules and Patch Panels the user will get a link performance exceeding Category 6 Specification requirements. Cable Applications 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T, 10GBASE-T (IEEE802.3) 100VG-AnyLAN (IEEE802.12) 550 MHz Broadband Video Voice, T1, ISDN 155/ 622 Mbps ATM Power over Ethernet (POE) CAT6 UTP LSZH Cable enhanced the performance for transmission of high speed data, digital and analogue voice and video (RGB). It supports Gigabit Ethernet (1000 Base-T) standard. Operates at a bandwidth up to 250 Mhz. Comply with Cat.6 specifications 4-pair unshielded twisted pair (UTP) cable 23 AWG solid copper conductor for superior conductivity Frequency 250 MHz PE insulation PE central cross FR LSZH Jacket Specifications “Category 6 UTP Solid cable Color: Cool Gray 10C Length type : 305 M Heat-resistant : 75o C minimum (Temperature limited) Flame property : The purpose of the vertical flame test is to screen out flammable wires. That follow to VW-1 (UL) FT-1 (CSA), either. Conductor : 23 AWG(0.574 �0.007mm), Multi-cores (Solid) Conductor Metal : Bare Copper Insulation Material : HD-PE
