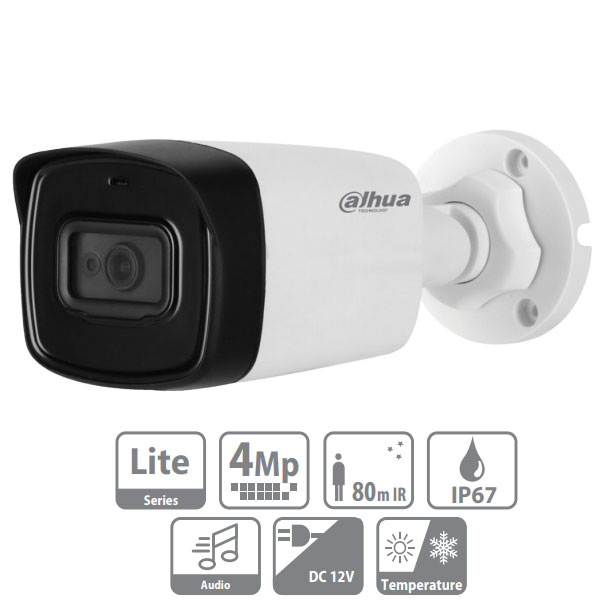

DAHUA Analog Camera DH-1400TLP

Description DAHUA Analog Camera DH-1400TLP Technical Specification:- Camera Image Sensor1/2.7″ CMOS Effective Pixels2560(H)×1440(V), 4MP Scanning SystemProgressive Electronic Shutter SpeedPAL: 1/25~1/100000s , NTSC: 1/30~1/100000s Minimum Illumination0.03Lux/F2.0, 30IRE, 0Lux IR on S/N RatioMore than 65dB IR DistanceUp to 80m (262feet) IR On/Off ControlAuto / Manual IR LEDs2 Lens Lens TypeFixed lens / Fixed iris Mount TypeBoard-in Focal Length3.6mm (2.8mm, 6mm, 8mm optional) Max ApertureF2.0 Angle of ViewH: 76.4° (97°/48.6°/36.3°) , V: 41.6° (52°/27.9°/20.3°) Focus ControlN/A Close Focus Distance1400mm (800mm/2500mm/4500) 55.1” (31.5”/98.4”/177.2) Pan / Tilt / Rotation Pan/Tilt/Rotation Pan: 0° ~ 360° , Tilt: 0° ~ 90° , Rotation: 0° ~ 360° Video Resolution4MP (2560×1440) Frame Rate25/30fps@4MP, 25/30fps@1080P Video Output1-channel BNC high definition video output / CVBS video output (Can switch) Day/NightAuto (ICR) / Manual OSD MenuMulti-language BLC ModeBLC / HLC / DWDR WDRDWDR Gain ControlAGC Noise Reduction2D White BalanceAuto / Manual Smart IRAuto / Manual Certifications Certifications CE(EN55032, EN55024, EN50130-4) FCC(CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL(UL60950-1 CAN/CSA C22.2 No.60950-1) Interface Audio InterfaceBuilt-in mic Eelectrical Power Supply12V DC ±30% Power ConsumptionMax. 5.6W (12V DC, IR on) Environmental Operating Conditions-40°C ~ 60°C (-40°F ~ 140°F) / Less than 95% RH * Start up should be done at above -40°C (-40°F) Storage Conditions-40°C ~ 60°C (-40°F ~ 140°F) / Less than 95% RH Ingress Protection & Vandal ResistanceIP67 Construction CasingPlastic Dimensions80.2mm×76.2mm×198.9mm (3.16″×3″×7.83″) Net Weight0.23kg (0.51lb) Gross Weight0.37kg (0.82lb)
