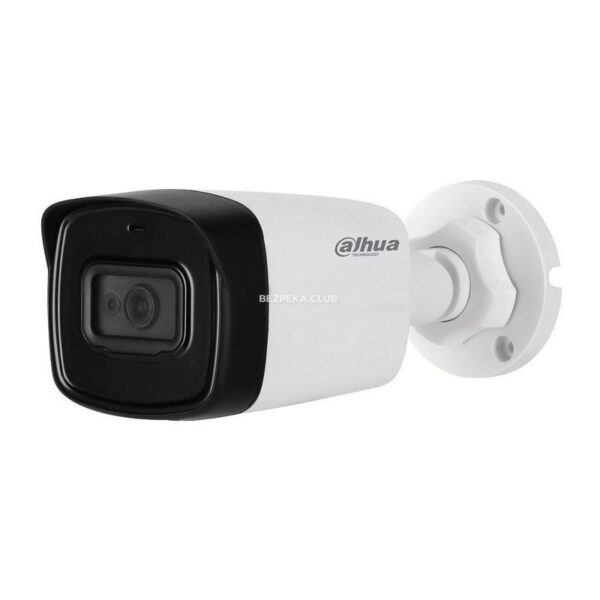

Description DAHUA Analog Camera DH-1200TLP-A Specification Camera Image Sensor 1/2.7 inch CMOS Effective Pixels 1920(H)?1080(V), 2MP Scanning System Progressive Electronic Shutter Speed PAL: 1/25s?1/100000s NTSC: 1/30s?1/100000s S/N Ratio >65dB Minimum Illumination 0.02Lux/F1.9, 30IRE, 0Lux IR on Fill Light Working Distance 40 m (131.2 ft) IR On/Off Control Auto; manual IR LED Number 2 Pan/Tilt/Rotation Range Pan: 0??360? Tilt: 0??90? Rotation: 0??360? Lens Lens Type Fixed-focal Mount Type M12 Focal Length 2.8 mm; 3.6 mm; 6 mm Max. Aperture F1.9 Field of View 2.8 mm: 119? x 101? x 54? (diagonal x horizontal x vertical) 3.6 mm: 100? x 84? x 45? (diagonal x horizontal x vertical) 6 mm: 60? x 56? x 30? (diagonal x horizontal x vertical) Iris Type Fixed iris Close Focus Distance 2.8 mm: 0.5 m (1.7 ft) 3.6 mm: 0.8 m (2.6 ft) 6 mm: 2 m (6.6 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 38.6 m (126.6 ft) 15.4 m (50.5 ft) 7.7 m (25.3 ft) 3.9 m (12.8 ft) 3.6 mm 49.7 m (163.1 ft) 19.9 m (65.3 ft) 9.9 m (32.5 ft) 5 m (16.4 ft) 6 mm 82.8 m (271.7 ft) 33.1 m (108.6 ft) 16.6 m (54.5 ft) 8.3 m (27.2 ft) Video Frame Rate CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; AHD: 1080P@25/30fps; 720P@25/30fps; TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H Resolution 1080P (1920?1080); 720P (1280?720); 960H (960? 576/960?480) Day/Night Auto switch by ICR BLC BLC/HLC/DWDR WDR DWDR White Balance Auto; manual Gain Control Auto; manual Noise Reduction 2D NR Smart IR Yes Electronic Defog Yes Mirror Off/On Privacy Masking Off/On (8 area, rectangle) Certifications Certifications CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010 A1:2015, EN 55035:2017, EN50130-4:2011 A1:2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1 CAN/CSA C22.2 No.60950-1) Port Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port Power Power Supply 12V ?30% DC Power Consumption Max 2.8W (12V DC, IR on) Environment Operating Temperature -40?C to 60?C (-40?F to 140?F); <95% (non-condensation) Storage Temperature -40?C to 60?C (-40?F to 140?F); <95% (non-condensation) Protection Grade IP67 Structure Casing Plastic throughout the whole casing Camera Dimensions 198.9 mm ? 80.2 mm ? 76.2 mm ( 7.83″ ? 3.16″ ? 3.00″ ) Net Weight 0.23 Kg (0.50 lb) Gross Weight 0.36 Kg (0.79 lb)
