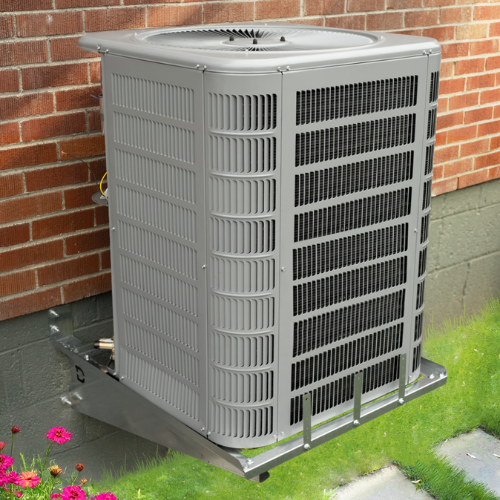

Hurricane Air Brace™ Direct-Mount Hanging Bracket The Hurricane Air Brace is a direct-mount hanging bracket to support condenser units, heat pumps, and other HVAC equipment, particularly useful in residential or multi-family dwelling applications where flooding, snowfall, mud, and steep grades are a concern. Engineered and tested to withstand the toughest of hurricanes, the Hurricane Air Brace is certified for both lateral and uplift wind pressure. It meets Florida’s strict building codes, providing you with peace of mind whether you’re in a coastal area or simply preparing for severe weather. Precision-made from laser-cut 16-gauge galvanized or 304 stainless steel, this heavy-duty bracket can be mounted on concrete block/brick, concrete, steel studs, wood studs, and hollow concrete block. Its elevated design protects units from flooding, storm surges, and snow, while improving airflow for better performance and efficiency. Installation is a breeze, requiring no ground leveling, which is ideal for steep, soft, or muddy terrain. This mounting method also simplifies maintenance, making inspections and service safer and easier. Special Characteristics: Hurricane engineered and tested Meets 2023 Florida Building Code, 8th edition Florida Product Approval Number (FL#47567.1), approved for high-velocity hurricane zones Certified for lateral and uplift wind pressure Elevated design improves air flow, reduces blockage, and helps protect units from storm surge No ground leveling or final grade needed for installation, saving on job completion time Heavy-duty laser cut 16-gauge galvanized or 304 stainless steel Includes 12 hurricane straps to be used for added security Lightweight and transports easily Simplifies equipment inspection and service Eliminates unit damage caused by lawn mowers and equipment Can be mounted on concrete block/brick, concrete, steel studs, wood studs, and hollow concrete block. Physical Engineered Raised Seal Drawing available upon request (additional fee will apply) Union made in the U.S. Ordering Information: Part Number:Bracket Size:Quantity:Weight: AIRBRACE36GA36" L x 30" W1 per box19.4 lbs (8.8 kg) AIRBRACE45GA45" L x 36" W1 per box25.2 lbs (11.4 kg) AIRBRACE55GA55" L x 48" W1 per box30.8 lbs (13.9 kg) AIRBRACE36S436" L x 30" W1 per box18.2 lbs (8.3 kg) AIRBRACE45S445" L x 36" W1 per box25.2 lbs (11.4 kg) AIRBRACE55S455" L x 48" W1 per box30.8 lbs (13.9 kg) Part Number:Description: AIRBRACEHBKITGAHurricane Air Brace Hollow Block Kit GA AIRBRACEHBKITS4Hurricane Air Brace Hollow Block Kit S4 * Mounting fasteners are not included due to the wide diversity in wall materials Related Resources To view all related resources you must log in or request access. Spec Sheets Hurricane Air Brace Spec Sheet Safety Data Sheets Galvanized Metal SDS MDS Sheet Stainless Steel Metal SDS MDS Sheet
