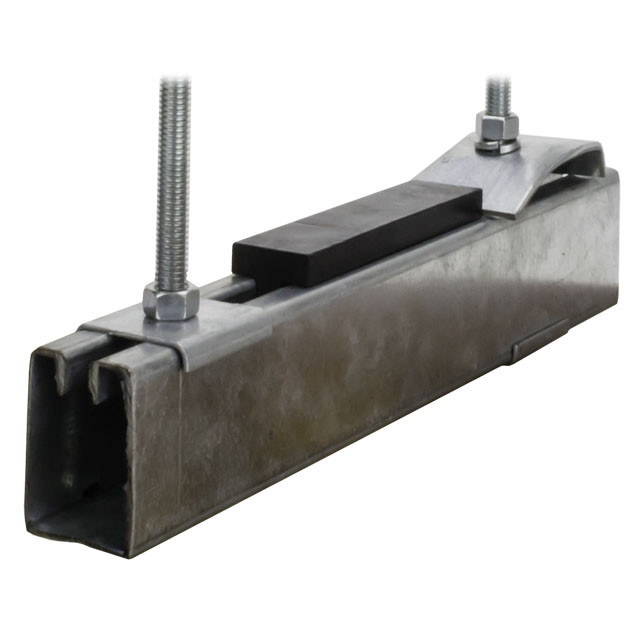

Pre-Punched Trapeze Duct Hanger Specialized Duct Support Channel The Pre-Punched Trapeze Duct Hanger is a specialized duct support channel designed to support rectangular and oval ductwork. Made from 18-gauge galvanized steel and measuring 2″ high x 1.5″ wide, this lightweight and easy-to-cut product arrives at the job site in 20-foot lengths, pre-punched with oval holes at 2-inch intervals for immediate use. Its versatile design eliminates the need for hard-to-cut and punch-angle iron, and it can be standardized to replace multiple hanger types, thereby potentially reducing inventory costs. The hanger’s neat, professional appearance is complemented by the option to insert heavy neoprene gaskets for sound isolation, and it can be secured to structural members up to 1.5 inches thick using its beam clamp. Special Characteristics: Lightweight & easy-to-cut Neat, professional appearance Pre-punched with oval holes spaced 2” apart on center 18-gauge galvanized steel in 20′ lengths, 2″ high x 1.5″ wide For supporting rectangular and oval ductwork Eliminates hard-to-cut and punch-angle iron Ships directly to the jobsite for immediate use Heavy neoprene gaskets can be inserted for sound isolation Beam clamp fastens hanger profile to structural members up to 1.5″ thick Versatile enough to standardize, possibly replacing several other types of hangers to reduce inventory cost Low in theft (exclusively sold to the HVAC industry) Ordering Information: Part Number:Packaging:Bundle Weight: TRAP03GA300' with 75 washers360 lbs (163.3 kg) TRAP05GA500' with 125 washers600 lbs (272.2 kg) DM2735AS100 pieces12 lbs (5.4 kg) TBCLAMP100 pieces48 lbs (21.8 kg) Related Resources To view all related resources you must log in or request access. Spec Sheets Trapeze Duct Hanger Spec Sheet Safety Data Sheets Galvanized Metal SDS MDS Sheet Related Products Isolation Hanger Type SI
