NEC NP-PA653UL PROJECTOR NP41ZL Lens Professional Laser Projector

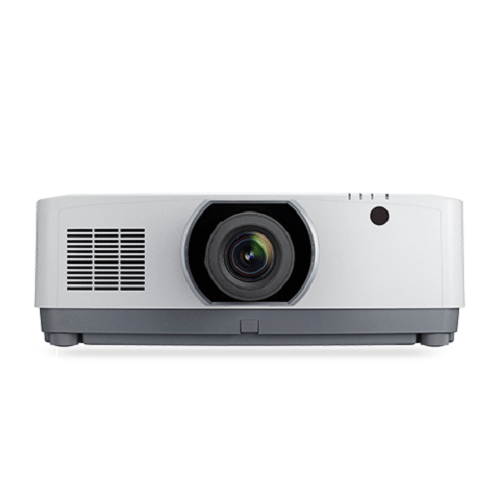

NEC NP-PA653UL PROJECTOR NP41ZL Lens Professional Laser Projector Description NEC NP-PA653UL PROJECTOR NP41ZL Lens Professional Laser Projector with advanced professional installation features for higher education and corporate users. The newly developed sealed optical engine creates a filter/maintenance free projector. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional powered lenses (lens shift, focus and zoom), tilt-free and portrait installation capabilities along with built-in edge blending and stacking. The HDBaseT input and seperate HDBaseT repeater provide single connections for uncompressed full HD digital video, audio, ethernet power and various control signals. Specifications: Display Aspect Ratio 16×10 Native Resolution WUXGA 1920 x 1200 Maximum Resolution 4K 4096 x 2160 Contrast Ratio (typical) 2,500,000:1 with light adjust Synchronization Range Horizontal (Analog/Digital) Analog: 15-100kHz, Digital: 15-153kHz Vertical Analog: 48-120Hz, Digital: 24-120Hz Signal Compatibility/Connectivity Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA , UXGA, WUXGA, WQXGA Macintosh Signal Compatibility Yes Sync Compatibility Separate Sync / Composite Sync / Sync on G External Control RS-232, IR, DDC/CI, USB Input Terminals RGB1(analog): VGA 15-pin D-sub RGB2(digital): HDMI (V2.0) w/HDCP (V1.4/2.2) RGB3(digital): HDMI (V2.0) w/HDCP (V1.4/2.2) RGB4(digital): DisplayPort w/HDCP (V1.4) RGB5(digital): HDBaseT w/HDCP (V1.4/2.2) Audio 1: Stereo Mini Jack Output Terminals Audioout: Stereo Mini Jack Monitor Out: HDBaseT w/HDCP (V1.4/2.2) Power Consumption (typical) On 672W / 437W / 0.64W / 0.11W Input Current 10.2A – 4.5A Power Requirements 100-240V AC, 50/60 Hz Physical Specifications Dimensions (WxHxD) Product: 22.8 x 19.4 x 8.2 in. / 580 x 494 x 208mm Weight Net Weight: 40.1 lbs. / 18.2 kg Environmental Conditions Operating Temperature 41-104°F / 5-40°C Storage -14-122°F / -10-50°C Limited Warranty (parts & labor) Registered owners receive a 5-year or 20,000 hours parts and labor warranty including InstaCare next business day exchange. Additional Features 4K Ready Powered Lenses Manual Keystone Correction 3D Stereo Geometric Correction Quick power on ECO Mode Technology DiCom Simulation Edge Blending Stacking Virtual Remote DisplayNote NaViSet Administrator 2 Quick power-off Picture-in-Picture Advanced AccuBlend AutoSense Optical Display Technology 0.76″ LCD w/ MLA Light Output(Lumens) 6500normal Lamp Life (up to) 20,000 hours Screen Size (diagonal) 50 to 500 in. / 1.27 to 12.7m, NP40ZL, NP41ZL, NP43ZL Throw Ratio 0.79 – 1.11 Projection Distance 2.5 to 68.5 ft. / 0.74 to 20.9m Projector Angle 10.3 to 10.8° tele / 13.7 to 14.5° wide Lens Zoom: Variable Focus: Power F number, fnumber: Variable Keystone Correction /- 40° horizontal, /- 40° vertical Mechanical Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear Fan Noise 39 dB normal / 33 dB eco Regulations USA UL60950-1: 2nd edition, FCC Part15 Subpart B(ANSI C63.4.2014), CAN/CSA C22.2 No.60950-1-07,2nd Edition,2014, ICES-003 Issue6(ANSI C63.4:2014) Optional Lenses NP40ZL, NP41ZL, NP43ZL Light Output 6500normal Fan Noise 39 dB normal / 33 dB eco NEC NP-PA653UL PROJECTOR NP41ZL Lens Professional Laser Projector Catalog DISTRIBUTOR – UAE / OMAN / SAUDI / BAHRAIN / KUWAIT
