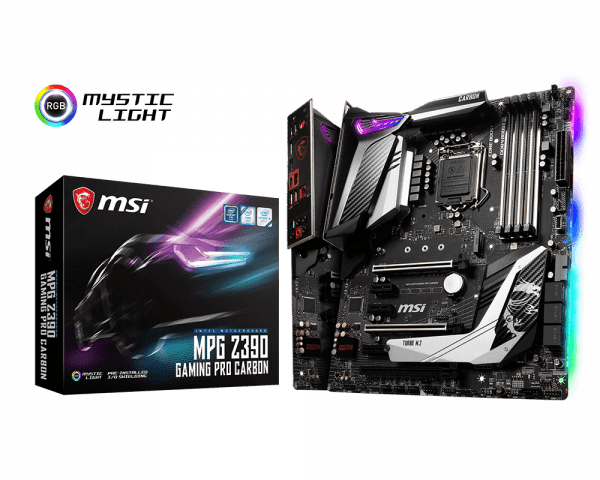

MSI MPG Z390 GAMING PRO CARBON Motherboard Description MSI MPG Z390 GAMING PRO CARBON Motherboard inspired by the curve and shape of supercars, offers colorful customization with MSI Mystic Light RGB, tuned for better performance by Core boost, DDR4 Boost, M.2 Shield Frozr, Intel Gaming LAN, Front USB 3.1 Gen2 connector Specifications: PROCESSOR Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket CHIPSET Intel® Z390 Chipset MEMORY 4 x DDR4 memory slots, support up to 128GB Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) SLOTS 3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes) 3 x PCIe 3.0 x1 slots ONBOARD GRAPHICS 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@24Hz 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz *No Display support when using the Processor model with suffix “F” MULTI-GPU Supports 2-Way NVIDIA® SLI™ Technology Supports 3-Way AMD® CrossFire™ Technology STORAGE Intel® Z390 Chipset 6 x SATA 6Gb/s ports1 2 x M.2 slot (Key M)1 Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices Intel® Optane™ Memory Ready2 M.2 slots and SATA ports share the bandwidth. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. RAID Intel® Z390 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 PCIe storage devices USB Intel® Z390 Chipset 5x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel, 1 Type-C internal connector) 4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) AUDIO Realtek® ALC1220P-VB2 Codec 7.1-Channel High Definition Audio Supports S/PDIF output LAN 1 x Intel® I219-V Gigabit LAN controller INTERNAL CONNECTORS 1 x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.1 Gen2 Type-C port 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin Water Pump connector 5x 4-pin system fan connectors 1x Serial port connector 1x Front panel audio connector 2x System panel connectors 1x Thunderbolt Add-on Card Connector 1x Chassis Intrusion connector 1x TPM module connector 2x 4-pin RGB LED connectors 1x 3-pin RAINBOW LED connector 1x 3-pin CORSAIR LED connector BACK PANEL PORTS PS/2 Combo Port LAN HD Audio Connectors USB 2.0 DisplayPort HDMI USB 3.1 Gen2 Type-A C USB 3.1 Gen2 Type-A Optical S/PDIF out DIMENSIONS 9.6 in. x 12 in. (24.3 cm x 30.4 cm) ATX Form Factor MOUNTING 9 mounting holes OPERATING SYSTEM Support for Windows® 10 64-bit MSI MPG Z390 GAMING PRO CARBON Motherboard Catalog DISTRIBUTOR – UAE / SAUDI / KUWAIT / OMAN / BAHRAIN
