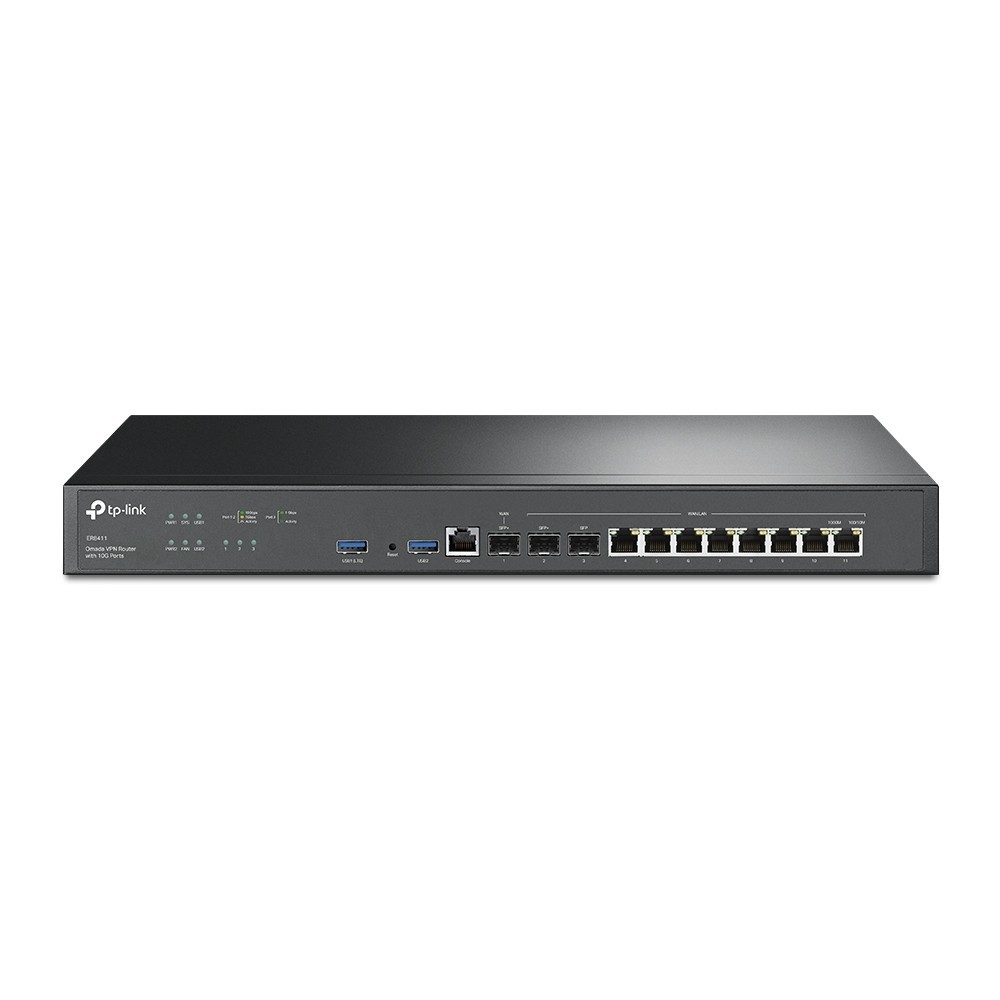

TP-Link ER8411 Omada VPN Router with 10G Ports

คุณสมบัติHARDWARE FEATURESInterface• 2× 10GE SFP Ports (1 WAN, 1 WAN/LAN) • 1× 1GE SFP WAN/LAN Ports • 8× 1GE RJ45 WAN/LAN Ports • 1× RJ45 Console Ports • 2× USB Ports (Connecting 4G/3G Modem as WAN Backup)ButtonReset ButtonPower SupplyRedundant Dual Power Supplies (100–240 VAC, 50/60 Hz)Flash4MB SPI NOR 256 MB NANDDRAM4 GB DDR4LEDPWR, SYS, WAN, LAN, USB, FANDimensions ( W x D x H )17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)Max Power Consumption• 26.36 W (with USB 3.0 connected) • 19.12 W (without USB 3.0 connected)PERFORMANCEConcurrent Session2,300,000New Sessions /Second20,000NAT (Static IP)• Upload: 9445.82 Mbps • Download: 9449.26 MbpsNAT(DHCP)• Upload: 9426.83 Mbps • Download: 9426.20 MbpsNAT(PPPoE)• Upload: 9413.96 Mbps • Download: 9102.01 MbpsNAT (L2TP)• Upload: 4230.62 Mbps • Download: 4169.53 MbpsNAT (PPTP)• Upload: 3933.86 Mbps • Download: 3821.97 Mbps64 Byte Packet Forwarding Rate• Upload: 1080 Mbps • Download: 1030 MbpsIPsec VPN Throughput• SHA1-AES256: 2140.45 Mbps • SHA2-AES256: 2080.20 MbpsOpenVPN1665.64 MbpsL2TP VPN Throughput• Unencrypted: 5013.50 Mbps • Encrypted: 2274.74 MbpsSSL VPN Throughput1511.10 MbpsBASIC FUNCTIONSWAN Connection Type• Static/Dynamic IP • PPPoE • PPTP • L2TP • 6to4 Tunnel • Pass-Through • Mobile Broadband: 4G/3G modem for backup via USB portMAC CloneModify WAN/LAN MAC Address*4DHCP• DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP • Multi-IP InterfacesIPv6WAN ConnectionVLAN802.1Q VLANIPTVIGMP v2/v3 ProxyADVANCED FUNCTIONSACLIP/Port/Protocol/Domain Name FilteringAdvanced Routing• Static Routing • Policy RoutingBandwidth Control• IP/Port-based Bandwidth Control • Guarantee & Limited BandwidthLoad Balance• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing*5, Failover) • Online DetectionNAT• One-to-One NAT*5 • Multi-Net NAT • Virtual Server • Port Triggering*5 • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnPSecurity• SPI Firewall • VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local ManagementSession LimitIP-based Session LimitVPNSSL VPN• SSL VPN Server • SSL VPN Client • 500 SSL VPN TunnelsIPsec VPN• 300 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm • IKE v1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)PPTP VPN• PPTP VPN Server • PPTP VPN Client (32)*6 • 300 Tunnels (Shared with L2TP) • PPTP with MPPE EncryptionL2TP VPN• L2TP VPN Server • L2TP VPN Client (32)*6 • 300 Tunnels (Shared with PPTP) • L2TP over IPSecOpenVPN• OpenVPN Server • OpenVPN Client (10)*6 • 110 OpenVPN TunnelsSECURITYFiltering• WEB Group Filtering*5 • URL Filtering • Web Security*5ARP Inspection• Sending GARP Packets*5 • ARP Scanning*5 • IP-MAC Binding*5Attack Defense• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WANAccess ControlSource/Destination IP Based Access ControlAUTHENTICATIONWeb Authentication• No Authentication • Simple Password*2 • Hotspot（Local User / Voucher*2 / SMS*2 / Radius*2） • External Radius Sever • External Portal Sever*2 • Facebook Check-In*2 • Instagram Follow*2MANAGEMENTOmada AppYes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.Centralized Management• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based ControllerCloud AccessYes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.ServiceDynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)Maintenance• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)*5 • NTP Synchronize*5 • Syslog SupportZero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.Management Features• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal ConfigurationOTHERSCertificationCE, FCC, RoHSPackage Contents• Omada 10G Multi-WAN Security Gateway ER8411 • Power Cord • Rack-Mount Kit • Quick Installation GuideSystem RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or LinuxEnvironment• Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing SKU: ER8411 Category: Router TP-Link
