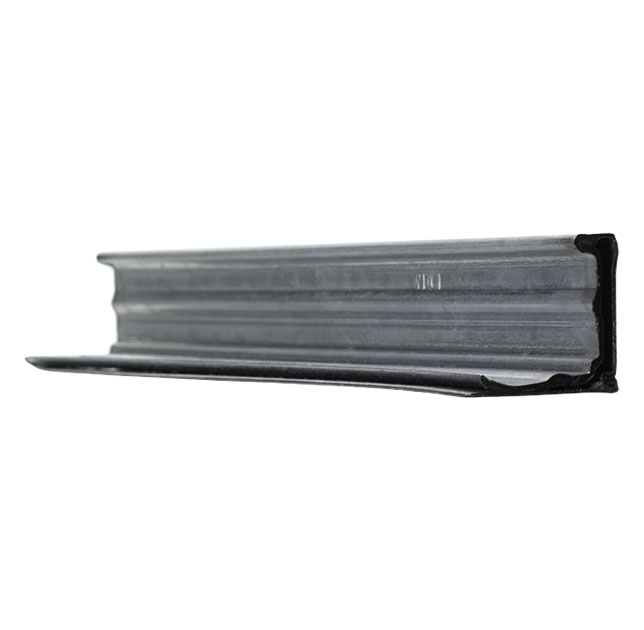

WDCI™ J&H Rectangular Duct Connector WDCI J&H duct connector systems are used to connect rectangular ducts when a rigid, leak-free connection is required. Description WDCI J&H duct connector systems consist of roll-formed flanges, corner pieces, a gasket, bolts, nuts, and a cleat. The flanges attach to the duct wall and have an integral mastic which allows the flange to seal itself to the duct. Corner pieces are used to add rigidity to the flange, hold the ductwork together, and provide a sealing surface for the gasket. The gasket serves as a seal between the flanges. The cleat ensures even compression of the gasket along the length of the flange. Special Characteristics Simple to install No additional sealing is required Available in specialty metals Consistent connections Sealing materials meet NFPA 90A & 90B Class 1 requirements WDCI J connection system is not recommended for applications with duct gauges heavier than 16 GA, or lighter than 26 GA WDCI H connection system is not recommended for applications with duct gauges heavier than 20 GA, or lighter than 26 GA Related Resources To view all related resources you must log in or request access. Spec Sheets WDCI J & H Spec Sheet Safety Data Sheets Ductmate 440 Gasket Tape SDS MDS Sheet 5511M Mastic SDS MDS Sheet PVC Cleat MSDS MDS Sheet Galvanized Metal SDS MDS Sheet Galvanneal Metal SDS MDS Sheet Aluminized Metal SDS MDS Sheet Aluminum Alloys SDS MDS Sheet Stainless Steel Metal SDS MDS Sheet Carbon Steel and Black Iron Metal SDS MDS Sheet PVC Coating MSDS MDS Sheet Related Products Butyl Gasket Tape & Patches – DM 440™ Neoprene Gasket Tape Bolt-On Cleat Versa-Cleat® Cleater® 1 and Cleater® 2 Ductmate Alignment Tool Ductmate Repeater4200 Universal Press-On Bullnosing
