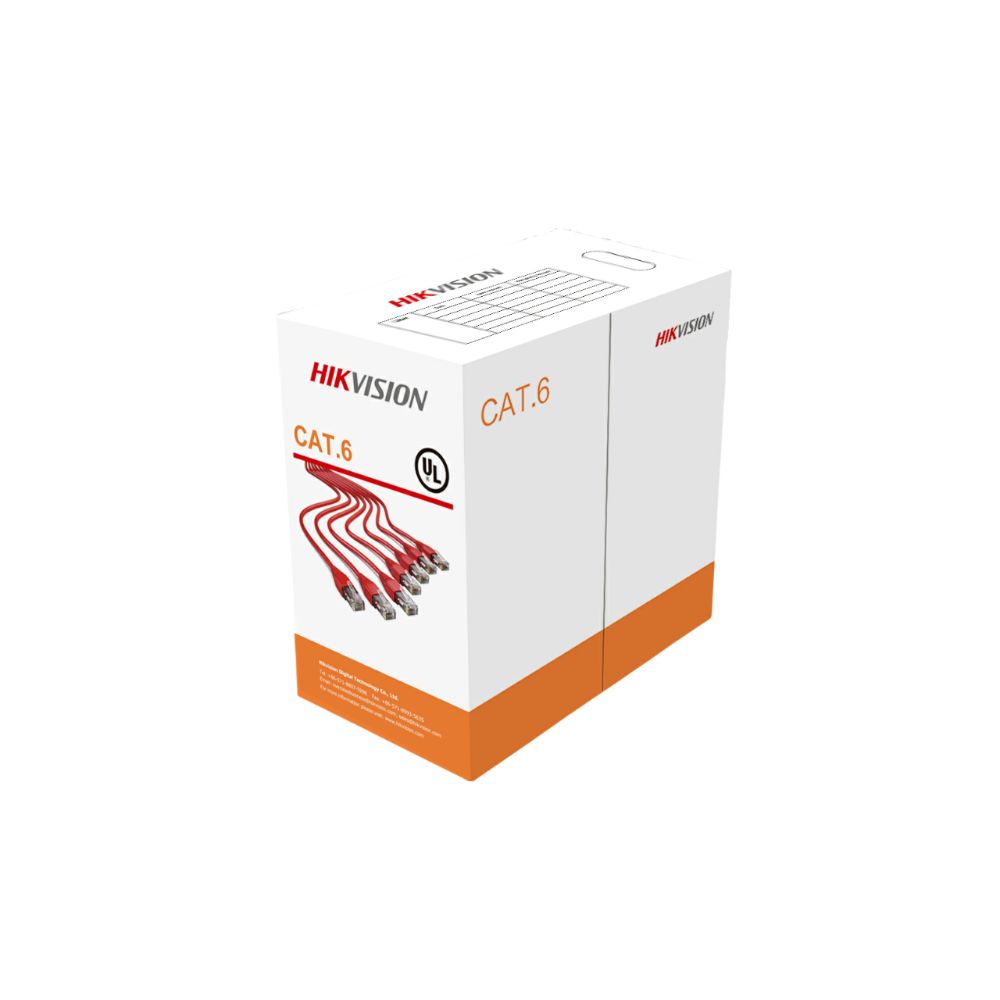

Hikvision Cat6 UTP Network Cable 305 Mtr (Orange Box)

Description Hikvision Cat6 UTP Network Cable 305 Mtr (Orange Box) Product Description   Cat6 UTP Network Cable (Solid Copper, 0.5 mm, CM) 305 Mtr   Full diameter 305 m CAT6 network cable Core diameter: 0.565mm Excellent transmission performance using solid copper Quality verified by Fluke test Guaranteed long PoE transmission distance Great PVC flame resistance Core Color1 White- Blue /Blue 2 White-Orange /Orange 3 White-Green /Green 4 White- Brown /Brown PackingWooden Tray & Carton Carton DimensionPer request Packing Length305±1.5m Rip-CordYes Drain WireNo Sheath Physical PropertiesBefore Aging Tensile Strength (Mpa) ≥13.5 Elongation(%) ≥150 Aging Period (℃×hrs) 100℃×24h×10d After Aging Tensile Strength(Mpa) ≥12.5 Elongation(%) ≥125 Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks Electrical Characteristics (20℃)1.0-250.0MHz Impedance ((Ω) 100±15 1.0-250.0MHz Delay Skew (ns/100m) ≤45 DC Resistance (Ω/100m) max 9.38 DC Conductor Resistance Unbalance (%) max 5.0 Conductor MaterialSolid-Bare Copper Content 99.95% Nom.O.D.(Mm)0.565±0.005 Insulation MaterialHDPE Diameter1.02±0.05mm Sheath Thickness0.55±0.05 mm External O.D.6.2±0.4 mm SurfaceClean,Frap,Satiation MaterialPVC(complies RoHS),CM ColorOrange RAL2003 Surface Printing Letter Height3.0±0.3mm ColorBlack Print Error & Space≤±0.5%，1m
